WAVE Western Mains

WAVE Western Mains restrooms are plumbed into the water supply and sewage system, ideal for working sites, urban areas and other long-term placements.

Configure products to request a quote. No purchase will be made at checkout! Simply submit your selected products and options, and we'll send you a customized quotation.

Many other color combos available, just ask!

Standard colors

Monochrome (min. order applies)

Scented colors

Mixed and Matched (min. order applies)

Select a color for each element

Select optional accessories

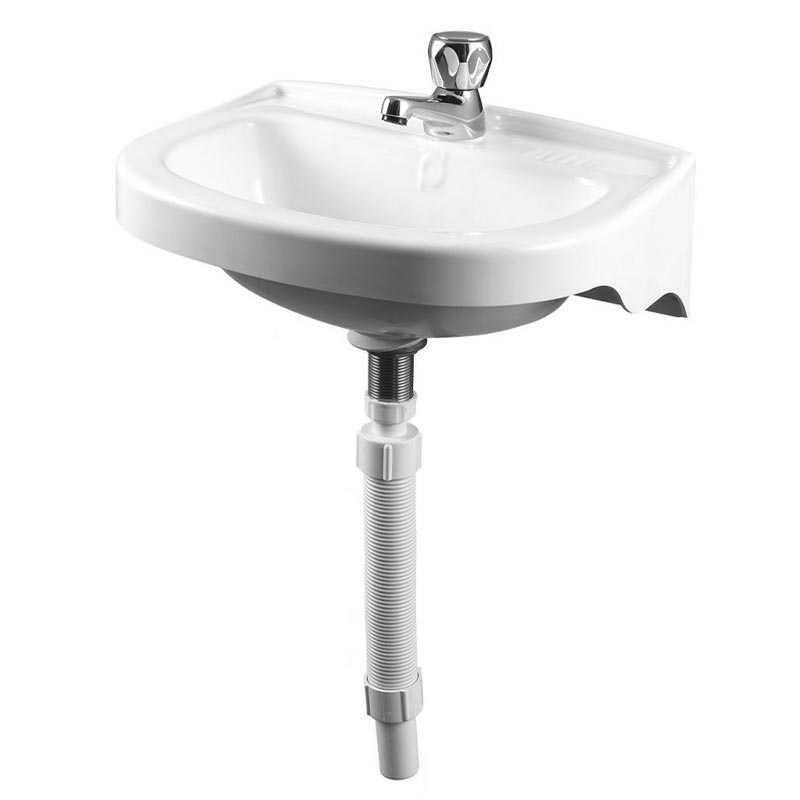

WAVE H2O Internal Handwash
Details
Assembling Services
Details

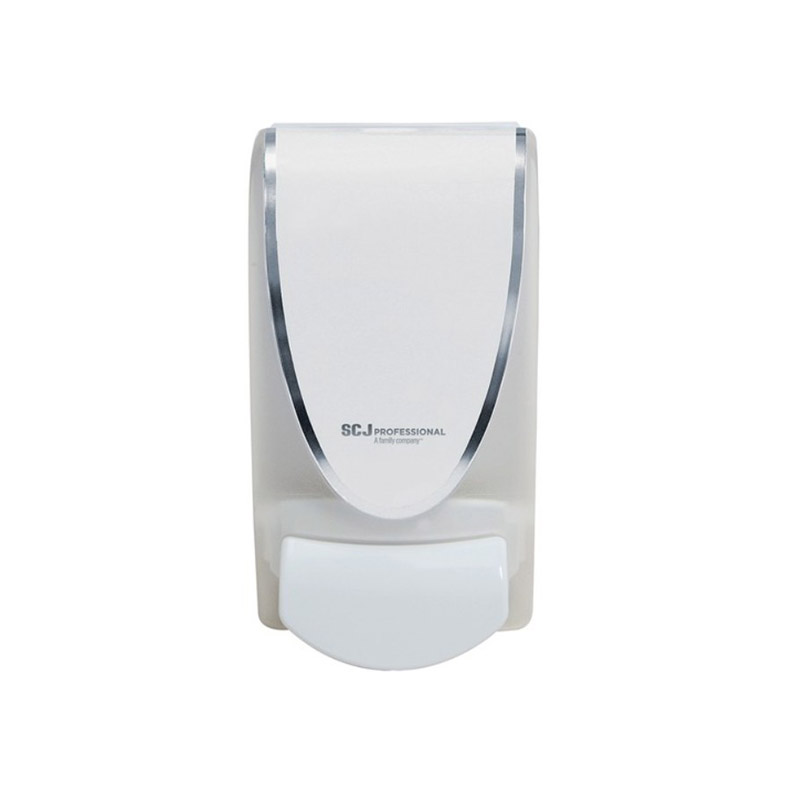

Soap & Sanitizer Dispenser
Details
Additional 3-Rolls toilet paper holder
Details
Riveting machine
Details
DeoMax Spray Unit
Details
Refill unit
Details

Technical specifications

  • Height (internal – external) 83” / 90” inches – 210.82 / 228.60 cm
  • Width (internal – external) 42” / 43” inches - 106.68 / 109.22 cm
  • Length (internal – external) 42” / 47.25” inches - 106.68 / 120.02 cm
  • Step height 9” / 22.86 cm
  • Seat height 17.71” / 450 mm
  • Outlet 4.33” / 110 mm
  • Fresh water capacity 12 L / 3.17 gal.
  • Weight (empty) 185 lbs / 83.91 kgs
  • Door opening 23” / 52.42 cm

Material used

  • High density polyethylene with anti-UV treatment
  • Translucent polyethylene anti-UV treated roof
  • Choice of Marine grade wood Floor or HDPE Floor
  • Sanitary wares in ABS

Features include

  • Wall cistern with 12 L/3.17 gal. fresh water capacity
  • Marine wood or HDPE Floor
  • Strong panels that interlock at the corners provide operators with excellent handhold areas
  • Anti-slip floor
  • Coat/tool-belt hook
  • 3-rolls toilet paper holder with built in shelf area
  • Smooth panels with molded ventilation areas for better air circulation
  • Door lock mechanism features strong metal core
  • Adjustable door catch to assure complete door closure
  • Metal door lock hasp
  • Notched base to help with unloading the restrooms
  • Hover handle strategically placed in door
  • Translucent roof

Standard colors

  • Blue
  • Sky Blue
  • Dark Blue
  • Sea Green
  • Green
  • Lime Green
  • Dark Green
  • Caramel
  • Red
  • Dark Red
  • Orange
  • Yellow
  • Purple
  • White
  • Gun Metal Grey
  • Grey

Solid colors

  • Blue
  • Sky Blue
  • Dark Blue
  • Sea Green
  • Green
  • Lime Green
  • Dark Green
  • Caramel
  • Red
  • Dark Red
  • Orange
  • Yellow
  • Purple
  • White
  • Gun Metal Grey
  • Grey

Scented colors

  • Pine / Dark Green
  • Vanilla / Cream
  • Rose / Pink

Downloads

WAVE Western Mains – ARMAL
This image is for illustrative purposes.

ARMAL HYDRO COLLECTION: THE BEST ALTERNATIVE TO SELF-CONTAINED CABINS WHERE WATER AND SEWAGE ARE AVAILABLE

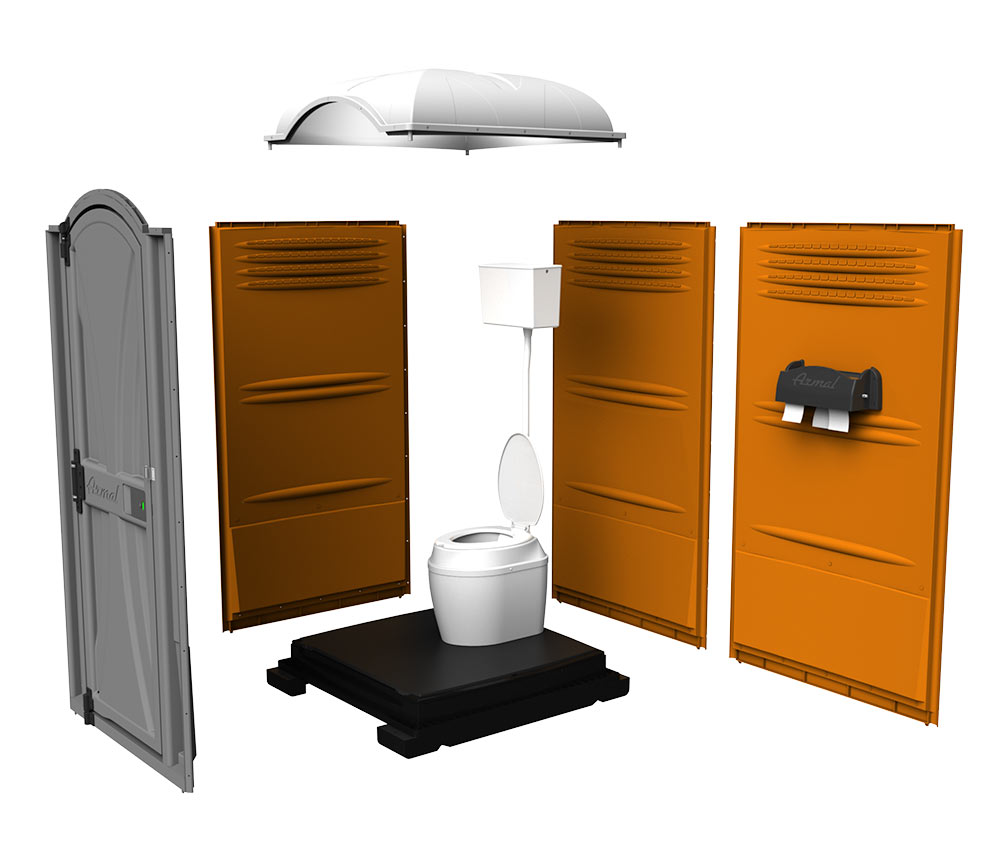

Armal WAVE Western Mains portable restroom includes a series of interior components and accessories that allow easy plumbing to the water supply and sewage system.

WAVE Western Mains – ARMAL

MAINS-CONNECTED SITTING RESTROOM

ARMAL provides a range of Restrooms that connect to the main sewer system and is ideal for long-term construction sites in urban areas. The inner components are resin instead of porcelain, making the restroom lighter and easier to maneuver.
